Harga Mulai
34 Jutaan NMAX TURBO NEO
Status Model : Best Seller
Varian : 7 Tipe

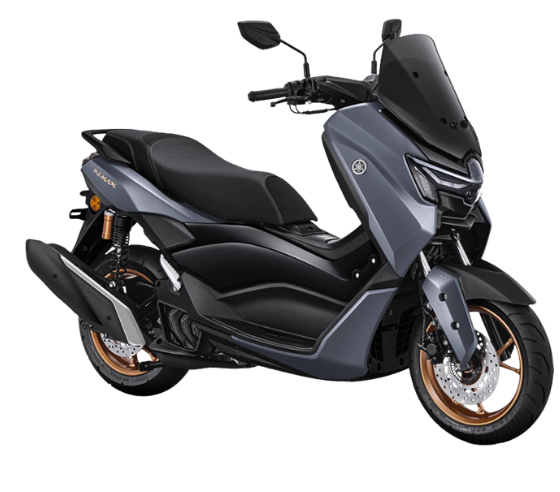

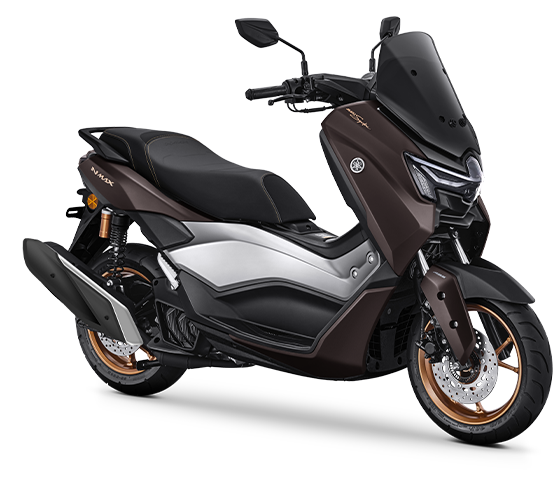

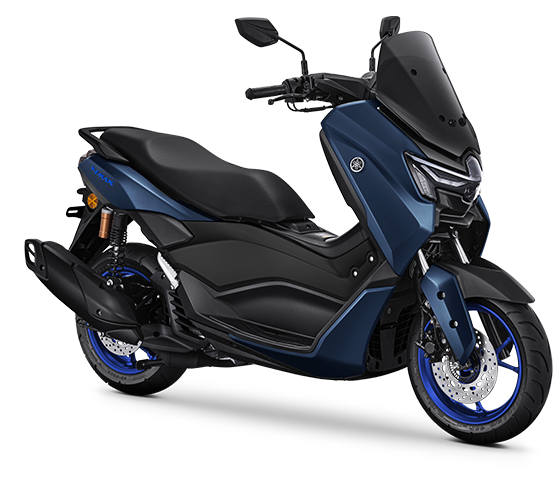

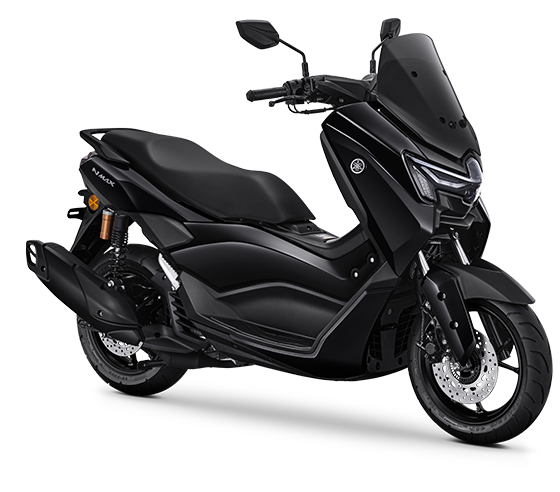

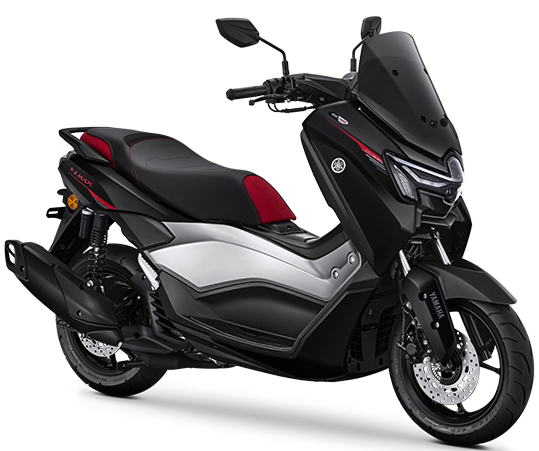

NMAX TURBO NEO
SPECIFICATIONS
Mesin
| Tipe Mesin | : | Liquid cooled 4-stroke, SOHC , VVA |
| Jumlah/Posisi Silinder | : | Single Cylinder |
| Volume Silinder | : | 155.09 cc |
| Diameter x Langkah | : | 58 mm x 58.7 mm |
| Perbandingan Kompresi | : | 11.6 : 1 |
| Daya Maksimum | : | 11.3 kW / 8000 rpm |
| Torsi Maksimum | : | 13.9 Nm / 6500 rpm |
| Sistem Starter | : | Electric Starter |
| Sistem Pelumasan | : | Wet Sump |
| Kapasitas Oli Mesin | : | 0,9 L (Periodical Change) |
| Sistem Bahan Bakar | : | Fuel Injection |
| Tipe Kopling | : | Single Dry Clucth |
| Tipe Transmisi | : | Automatic |
Rangka
| Tipe Rangka | : | Underbone |
| Suspensi Depan | : | Teleskopic |
| Suspensi Belakang | : | Unit Swing |
| Ban Depan | : | 110/70 – 13 M/C 48P |
| Ban Belakang | : | 130/70 – 13 M/C 63P |
| Rem Depan | : | Hydraulic Single Disc Brake |
| Rem Belakang | : | Hydraulic Single Disc Brake |
Dimensi
| P x L x T | : | 1935 x 740 x 1160 mm |
| Jarak Sumbu Roda | : | 1340 mm |
| Jarak Terendah Ke Tanah | : | 124 mm |
| Tinggi Tempat Duduk | : | 765 mm |
| Berat Isi | : | 130 kg (Standard & Connected Version), 132 kg (Connected/ABS Version) |
| Kapasitas Tangki Bensin | : | 7.1 L |
Kelistrikan
| Sistem pengapian | : | TCI |
| Battery | : | YTZ6V/YTZ7V |
| Tipe Busi | : | NGK/CPR8EA-9 |
