Harga Mulai
20 Jutaan FINO SERIES
Status Model : Promo
Varian : 3 Tipe
1
2
3
4
5
6

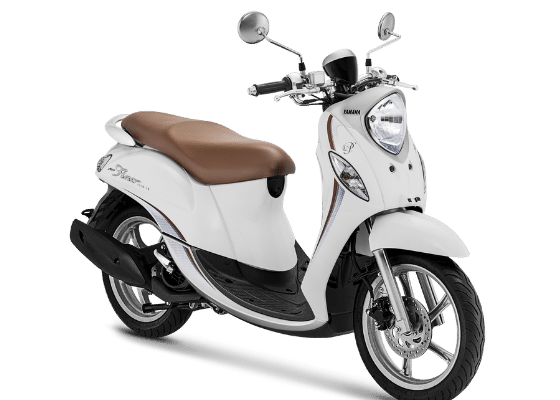

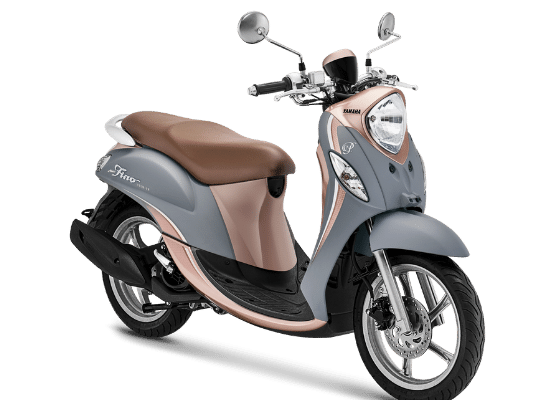

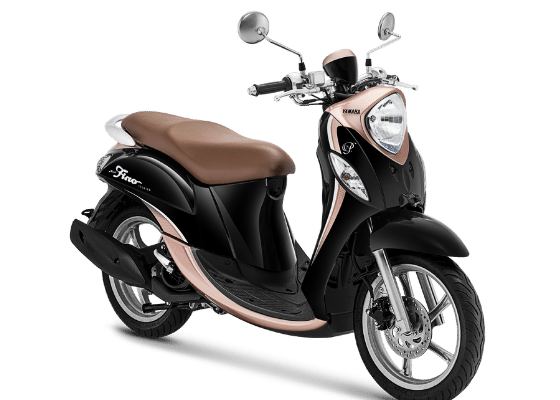

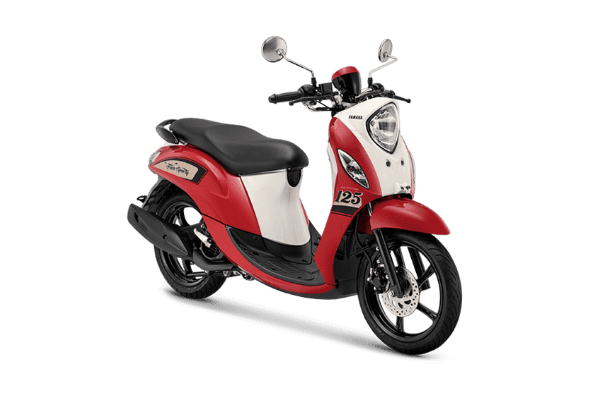

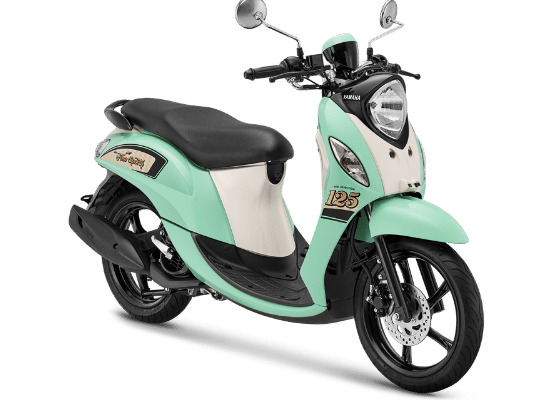

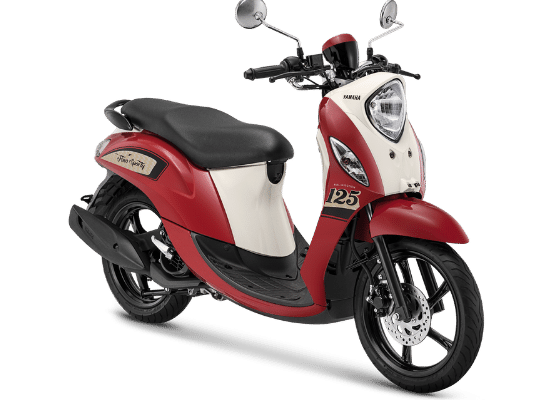

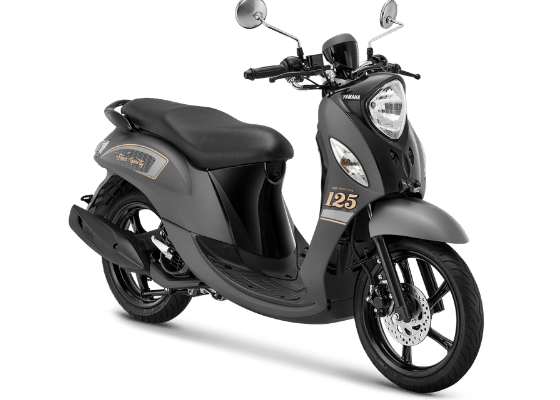

FINO SERIES
SPECIFICATIONS
Mesin
| Tipe Mesin | : | Air cooled, 4-stroke, SOHC |
| Jumlah / Posisi Silinder | : | Single Cylinder |
| Diameter x Langkah | : | 52,4 x 57,9 mm |
| Volume Cylinder | : | 125 cc |
| Perbandingan Kompresi | : | 9,5 : 1 |
| Daya Maksimum | : | 7.0 kW (9.52 PS) / 8000rpm |
| Torsi Maksimum | : | 9.6 N.m (0,98 kgf.m) / 5500rpm |
| Sistem Starter | : | Elektrik Starter & Kick Starter |
| Sistem Pelumasan | : | Basah |
| Kapasitas Oli Mesin | : | Total = 0,84 L ; Berkala = 0,80 L |
| Sistem Bahan Bakar | : | Fuel Injection |
| Tipe Kopling | : | Kering, Sentrifugal Automatic |
| Tipe Transmisi | : | V-belt Automatic |
Rangka
| Tipe Rangka | : | Underbone |
| Suspensi Depan | : | Teleskopik |
| Suspensi Belakang | : | Unit Swing |
| Ban Depan | : | 80/80-14M/C 43P |
| Ban Belakang | : | 100/70-14M/C 51P |
| Rem Depan | : | Disc Brake |
| Rem Belakang | : | Drum Brake |
Dimensi
| P X L X T | : | 1870mm X 700mm X 1066mm |
| Jarak Sumbu Roda | : | 1260mm |
| Jarak Terendah Ke Tanah | : | 135mm |
| Tinggi Tempat Duduk | : | 745mm |
| Berat Isi | : | 98 kg |
| Kapasitas Tangki Bensin | : | 4,2 L |
Kelistrikan
| Sistem Pengapian | : | TCI |
| Battery | : | YUASA/YTZ6V |
| Tipe Busi | : | NGK/CR6HSA |
